Portable Solar Container Design: Panels & Batteries

Ever been stuck without power, maybe during a camping trip gone wrong or a surprise outage? That feeling of helplessness is, well, pretty cheugy. Now imagine needing reliable electricity for something critical, like a remote clinic or disaster relief. The struggle for accessible, off-grid power is real. Portable solar power systems built inside shipping containers offer a potentially brilliant Band-Aid solution, combining generation and storage in one rugged package. But the million-dollar question (sometimes literally!) is: portable how many solar panels fit in a shipping container design with battery storage? It’s not just about cramming stuff in; it’s a complex dance of space, energy needs, and engineering smarts. This isn't just a niche tech question; it's about unlocking energy independence where it's needed most.

The Energy Access Problem: Why Portable Power Matters

Access to reliable electricity isn't universal. Remote communities, disaster zones, construction sites, and even forward military bases often rely on noisy, polluting diesel generators. These are expensive to run, logistically challenging to fuel, and environmentally damaging – arguably a major step backwards in our climate-conscious world. The FOMO on clean energy tech is real for these applications. Portable solar container systems promise a cleaner, quieter, and often more cost-effective alternative. But simply slapping some panels on a box isn't enough. The true value lies in integrating sufficient solar generation with robust battery storage to provide power day and night, rain or shine. How do we make that happen efficiently within the confines of a steel box?

Shipping Container Basics: Your Steel Canvas

First, let's understand the canvas. Standard ISO shipping containers come primarily in 20-foot and 40-foot lengths. The internal dimensions are crucial:

• 20ft Container: Approx. Internal Length: 5.9m (19.4ft), Width: 2.35m (7.7ft), Height: 2.39m (7.8ft) - Usable floor area ~14 sqm (150 sqft).
• 40ft Container: Approx. Internal Length: 12.03m (39.5ft), Width: 2.4m (7.9ft), Height: 2.39m (7.8ft) - Usable floor area ~28.5 sqm (307 sqft).

High-cube versions add about 30cm (1ft) in height. These dimensions set the absolute boundaries for fitting equipment. You can't magically make the container bigger, though clever design maximizes every inch. Remember, it's not just panels; inverters, charge controllers, climate control, and crucially, the battery storage all need space. Ventilation, walkways for maintenance (safety first!), and structural supports eat into that precious real estate too. It's a tight squeeze.

How Many Solar Panels Fit Inside? The Math

So, let's tackle the core question: portable how many solar panels fit in a shipping container? The answer is frustratingly: it depends. Primarily on the panel size and mounting configuration.

Most modern utility and commercial panels are around 1m wide by 2m long (approx. 39" x 78"), generating roughly 400W to 550W each. Let's use a common 500W panel (1m x 2m) as our benchmark:

Angled racks (often around 30-40 degrees) allow more panels than flat mounting by utilizing height, but they create shadows and require more complex support – you can't just stack 'em high. Vertical mounting on walls saves floor space for batteries but sacrifices significant yield unless using bifacial panels, and even then, it's usually less efficient. Roof mounting *outside* the container is popular for maximizing generation, freeing up the entire interior for battery storage and power equipment. This is often the optimal design, but it impacts transport height clearances. Did you consider how transporting the container with roof panels affects bridges and tunnels? Logistics matter. (note: check latest bifacial efficiency stats)

Back in college, a friend tried building a tiny off-grid cabin using reclaimed panels bolted haphazardly to an old trailer. Let's just say his "portable how many solar panels fit" calculation involved duct tape and hope. It… didn't end well when the first storm hit. Professional container systems require rigorous engineering.

Panel Technology Matters: Efficiency & Size

Not all panels are created equal. Higher efficiency panels (22%+) can generate more power in the same footprint compared to standard models (18-20%). Alternatively, using slightly smaller residential panels (e.g., 1.7m x 1m) might allow for a more efficient packing arrangement within the container frame, potentially fitting more kW overall than fewer, larger panels if space utilization is optimized. Monocrystalline panels are generally more efficient than polycrystalline. Then there's the growing promise of bifacial panels, which capture light from both sides. If used inside a container with reflective surfaces or mounted vertically with good rear-side access to ambient light, could they offer a boost? Possibly, though it's a more niche application within the confined space. The choice directly impacts the answer to "how many solar panels fit".

Battery Storage Capacity: The Heart of the System

Here's where the "design with battery storage" part becomes critical. Solar panels only generate when the sun shines. To provide 24/7 power, you need batteries. And batteries take up significant space and weight. The amount of storage you need depends entirely on the application's power consumption and required autonomy (days without sun).

Common battery chemistries for containerized systems include:

• Lithium-Ion (Li-ion): High energy density (150-200 Wh/kg), long lifespan, compact size. Dominant choice. (NMC, LFP).
• Lead-Acid: Lower energy density (30-50 Wh/kg), cheaper upfront but shorter lifespan, bulkier, requires ventilation. (Flooded, AGM, Gel).

Let's imagine a hypothetical scenario: a 20ft container housing a mobile clinic. Critical loads might include refrigeration for vaccines (constant 500W), lighting (200W), and medical devices (sporadic 1kW peaks), averaging say 1.5kW continuous load over 24 hours (36kWh). You'd want at least 2-3 days of autonomy for reliability, so 72-108 kWh of usable storage. Lithium batteries needing roughly 0.25-0.3 cubic meters per 10kWh usable storage would require 1.8 - 3.24 cubic meters just for the batteries! That's a huge chunk of a 20ft container's ~33 cubic meter internal volume.

Compare that to a construction site needing only overnight power for tools and site lighting – maybe just 20-30kWh storage. The battery storage capacity requirement dictates the space allocation, which directly constrains how many panels you can *afford* to put inside, if any. Usually, the batteries win the interior space battle, pushing panels outside.

According to data compiled by Wood Mackenzie, LFP batteries captured over 50% of the global stationary storage market in 2024 due to safety and longevity advantages, crucial for portable how many solar panels fit in a shipping container design with battery storage applications. Weight is another factor – a 40ft container packed with LFP batteries could easily exceed 10 tons, impacting transport costs and foundation requirements on-site. Balancing the solar panel generation potential with sufficient battery storage within the weight and volume limits is the core engineering challenge. Is it better to have slightly fewer panels but ample storage, or risk running out of juice on cloudy days?

Key Design Considerations Beyond Panels & Batteries

Fitting the panels and batteries is only half the battle. Designing a functional, safe, and durable system requires integrating several other critical components:

* Power Conversion: Inverters (DC to AC) and charge controllers (managing panel-to-battery charging) are essential. These need dedicated, accessible, and ventilated space. Modern units are compact but generate heat. Wait, no – actually, high-power inverters can be quite substantial! * Climate Control: Batteries, especially Li-ion, and electronics hate extreme heat or cold. Insulation and active HVAC (heating, ventilation, air conditioning) are usually non-negotiable, consuming significant power themselves. This impacts the net energy available and the space needed. * Safety Systems: Fire suppression (specific to battery chemistry), comprehensive electrical protection (breakers, fuses, surge protection), ventilation for hydrogen (if using lead-acid), and physical security locks are mandatory. Safety takes space. * Structural Integrity: Mounting heavy batteries and racks securely to the container floor and walls requires reinforcement. Angled interior panel racks need strong framing. You can't just rely on the container's basic structure. * Access & Maintenance: Technicians need safe access to all components. Walkways, service clearances, and doors/hatches add overhead. This isn't just about packing density; it's about buildability and serviceability. A totally packed container is a nightmare to fix in the field.

Another hypothetical: An off-grid research station in the Arctic. The container design with battery storage must prioritize extreme insulation and heating systems. The energy consumed just to keep the batteries warm could rival the research equipment load! This drastically changes the solar panels fit and battery sizing equation. Compromises are inevitable.

Optimizing for Transport & Deployment

True portability means the system needs to survive road or sea transport and be rapidly deployable. This influences the design with battery storage heavily:

* Transport Height: Roof-mounted panels increase shipping height, potentially exceeding standard limits (usually ~4.15m or 13.6ft for road). Folding or retractable panel mechanisms exist but add cost and complexity. * Weight Distribution: Batteries are heavy. Their placement affects axle loading during transport and stability when deployed. You can't just pile them all in one corner. * Rapid Connection: Pre-wired external connection points for power output, generator input (for backup), and sometimes even container-to-container linking are vital for quick setup. Think plug-and-play. * Corrosion Protection: Systems deployed in coastal or harsh environments need upgraded materials and sealing. Salt spray is a killer.

Well, you know, getting ratio'd online because your shiny new solar container got stuck under a bridge on the way to the job site? That's some Monday morning quarterbacking we all want to avoid. Careful planning is everything.

Real-World Applications & Use Cases

Where are these portable solar container systems actually making a difference? Their versatility is impressive:

* Disaster Relief: Deployed rapidly after hurricanes or earthquakes to power emergency communications, medical tents, water purification, and lighting. Speed and reliability are paramount. Organizations like the IFRC increasingly utilize them (IFRC). * Remote Mining & Construction: Providing primary or supplemental power far from the grid, reducing diesel reliance and emissions. Temporary sites benefit hugely from the plug-and-play nature. * Agriculture: Powering irrigation systems, cold storage for produce, and farm operations in off-grid areas. Improving food security and farmer incomes. * Events & Filming: Supplying clean power for festivals, concerts, and remote movie sets, replacing noisy generators. * Microgrids & Community Power: Acting as the generation/storage hub for small communities or island grids. Multiple containers can be linked. The latest IRENA reports highlight the growth of renewable microgrids globally. * Telecom Infrastructure: Powering remote cell towers reliably. Telecom operators are major adopters.

Consider a case study: A company deployed 40ft containers with 80kW of roof-mounted panels and 200kWh of LFP storage to power remote gold mining operations in Australia. By slashing diesel consumption by over 70%, they achieved a payback period of under 4 years while significantly reducing their environmental footprint and logistics burden. This demonstrates how design with battery storage directly enables operational efficiency. How many such opportunities exist in industries we haven't fully tapped yet?

Future Trends & Challenges

The landscape for portable how many solar panels fit in a shipping container design with battery storage is evolving rapidly:

* Higher Efficiency Panels: Perovskite-silicon tandems promise efficiencies exceeding 30%, potentially allowing more kW per sqm. This could mean fewer panels needed for the same output, freeing up space or boosting power. * Solid-State Batteries: Though still emerging, they offer potentially higher energy density, longer lifespans, and improved safety compared to current Li-ion. If realized, this could dramatically shrink the space needed for a given storage capacity. * Smart Energy Management: AI-driven software optimizing when to draw from solar, batteries, or backup generators based on weather forecasts, load patterns, and energy prices will maximize efficiency and system lifespan. * Standardization & Modularity: Development of plug-and-play components and standardized interfaces could reduce deployment times and costs. Think Lego blocks for containerized power. * Circular Economy: Focus on using second life EV batteries for stationary storage in these containers is gaining traction, offering cost and sustainability benefits, though with technical and warranty challenges.

However, challenges remain. Costs, while falling, are still significant. Supply chain vulnerabilities, especially for critical minerals for batteries, pose risks. Regulatory hurdles for connecting these systems, even temporarily, can be complex. And ensuring the long-term durability and serviceability of these complex systems in harsh environments is an ongoing task. The future is bright, but it's not without its clouds – we need to keep innovating on both tech and policy fronts. Seriously, the paperwork can sometimes feel like harder work than the engineering!

I recall visiting a project using a repurposed container for a school in a rural village. The genuine excitement of kids having electric lights for evening study, powered silently by the sun, was humbling. It wasn't about the how many solar panels fit metrics; it was about the human impact. That's the real potential, you know?

As energy demands shift and climate action becomes more urgent, these mobile powerhouses represent a key tool. They won't solve everything, but they offer a rapidly deployable, scalable solution for a world needing cleaner, more resilient energy access, one container at a time. The focus is shifting from just fitting the most panels to optimizing the entire energy ecosystem within that steel frame.

Related Contents

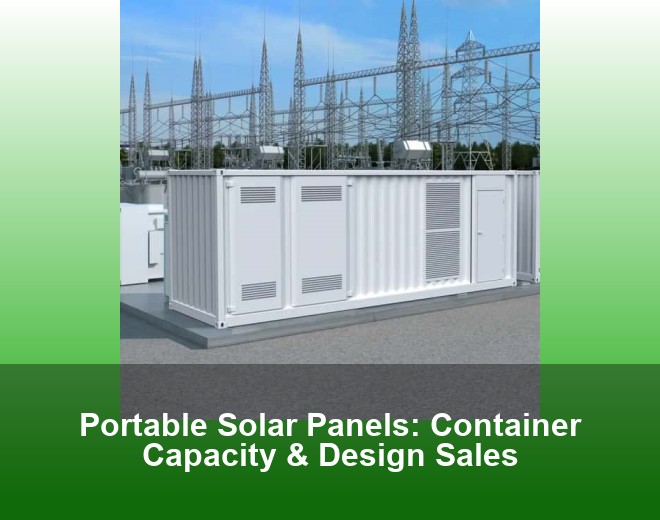

Portable Solar Panels: Container Capacity & Design Sales
